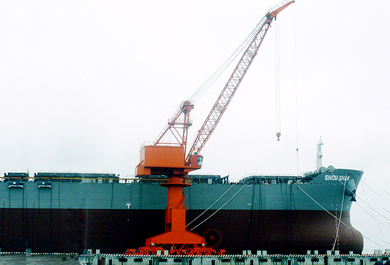

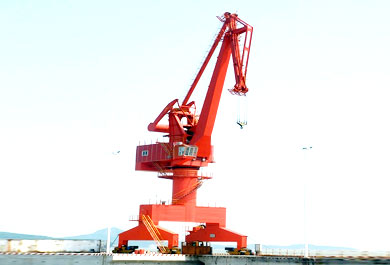

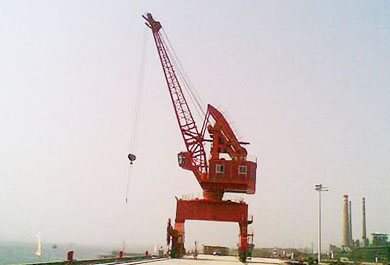

Level Luffing Portal Cranes boom is made up with four linked bars. The whole machine is light, with low wheel pressure. Its luffing system adopts steel wire luffing. It can luff with load, and move horizontally. This model has four working mechanisms, which are lifting, slewing, luffing and traveling. Level Luffing Portal Crane can work both independently and collaboratively. The linkage among all mechanisms greatly improves the equipment’s productivity. It moves stably, is save and reliable, the ideal equipment for shipbuilding factory assembly. The company uses its rich experience, exquisite techniques and reliable technologies during designing, manufacturing and installation, assuring the product will be able to run safely, reliably and smoothly under all normal working conditions.


Description	Specifications
Crane Capacity (Main Hoist)	60 Ton
Min. Radius (Main Hoist)	10 m
Max. Radius (Main Hoist)	30 m
Crane Capacity (Aux. Hoist)	10 Ton
Min. Radius (Aux. Hoist)	11.4 m
Max. Radius (Aux. Hoist)	40 m
Track Centres	7.9 m
Speeds:
Main Hoist	60 Ton @ 7.5 m per Min
	40 Ton @ 15 m per Min
	Creep Speed 1 m per Min
Aux. Hoist	10 Ton @ 20 m per Min
Slew	0.5 RPM
Luff	30 m per Min
Long Travel	Creep Speed 1 m per Min
Type of Attachment	Grab

Customizatioin Service and OEM service is available.
